Energy saving plastic injection machine

Model: SSF1680-S
Place of Origin: Zhejiang,China (Mainland)
Brand Name: Shuangsheng
Power: 50HZ
injection weight: 325g
clamp force: 1680kn
space between tie bars: 460*460
Min-max mould height: 180~520

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0 USDProduction Capacity:20sets/month
Trade Term:FOBPacking:nylon plastic bag in...
Payment Terms:L/C, T/TDelivery Date:30 days
Min. Order:1 Set/Sets
Means of Transport:Ocean

Energy saving plastic injection machine
Parameters of 160T plastic injection machine as below;

ParameterUnitParameter Value (SSF1680)
Screw diametermmABC
424550
Screw L/D ratioL/D23.62219.8
shot volumn (theoretical)Cm3311357441
injection weight(PS)g283325402
plasticizing capacityg/s1011.514.2
injection rateg/s138160196
injection pressureMpa203177143
screw speedrmp180
clamp forceKN1680
open strokemm435
distance between tie bars (W*H)mm460*460
max mould thicknessmm520
min mould thicknessmm180
ejector strokemm135
ejector forceKN50
ejector numberPC5
dia of mould location holemm125
max pump pressureMpa16
pump motor powerKW18.5
heating powerKW12.3
machine dimensionm5.13*1.45*2.12
machine weightT6
oil tank capacityL300

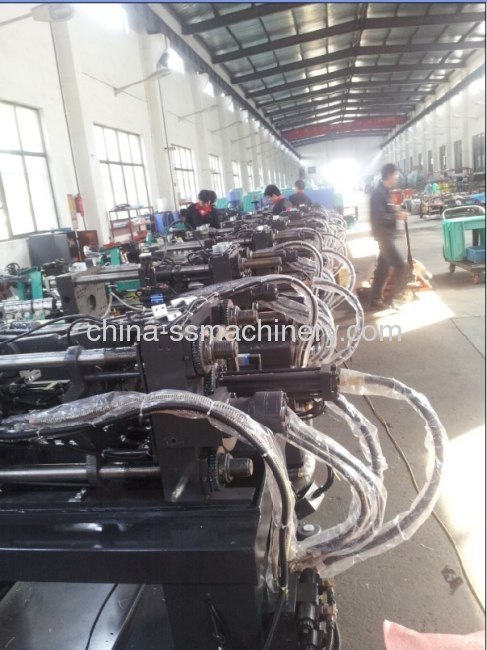

Injection molding machine assembly line
Machines equipped with servo motor, which is reduced the electricity comsumption.
Energy saving plastic injection machine

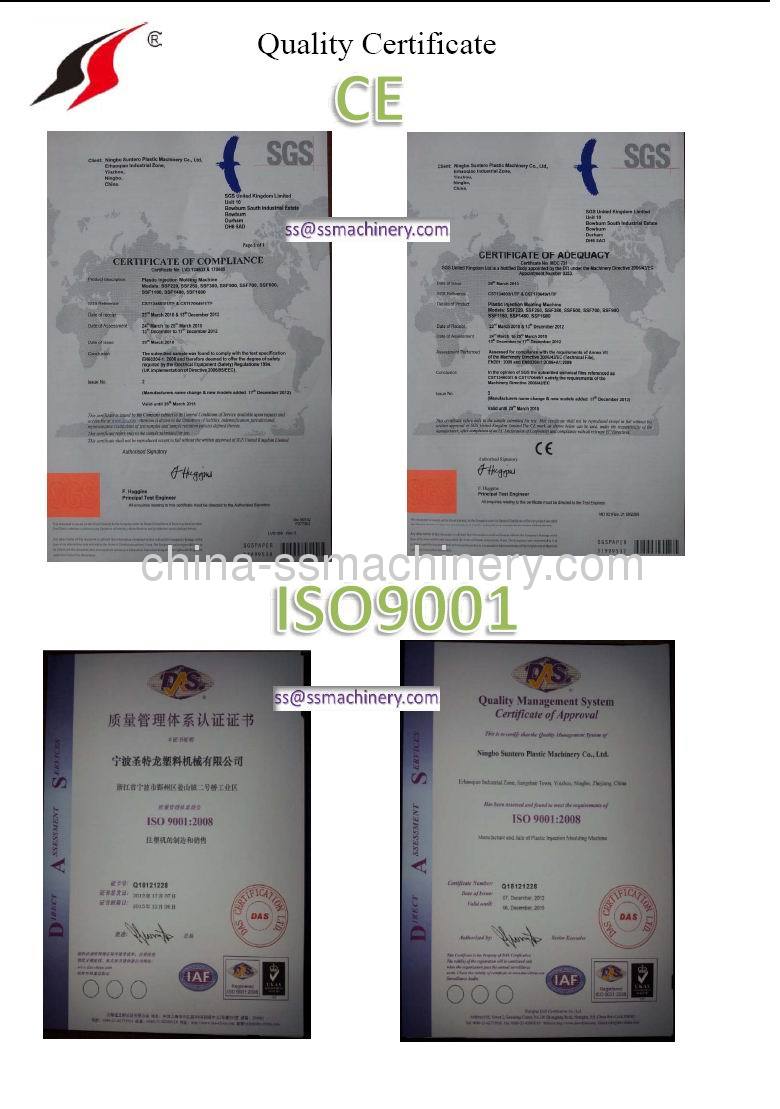

Shuangsheng brand plastic injection machine quality certificate;
Energy saving plastic injection machine

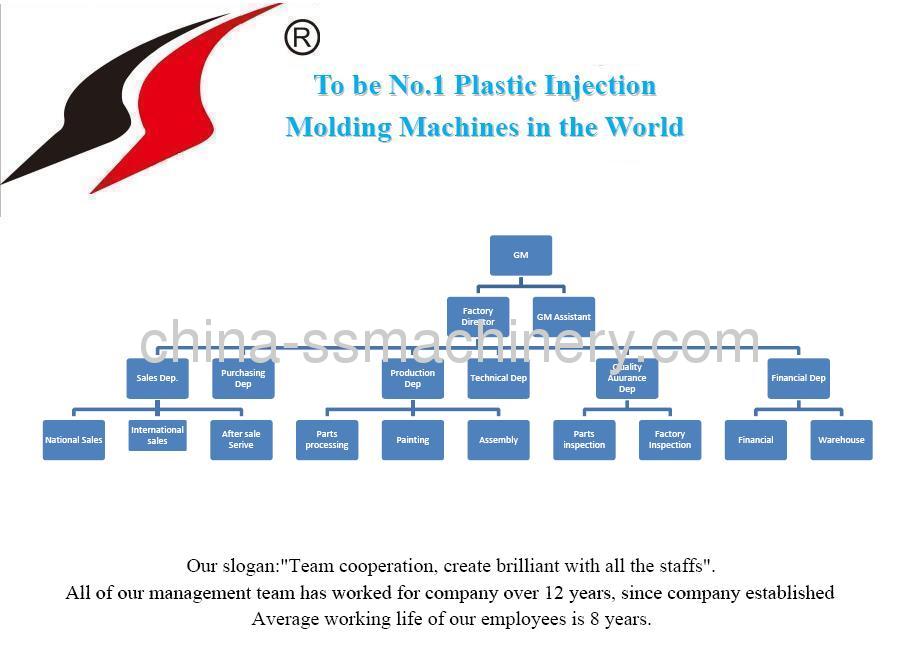

Organization chart
Energy saving plastic injection machine
