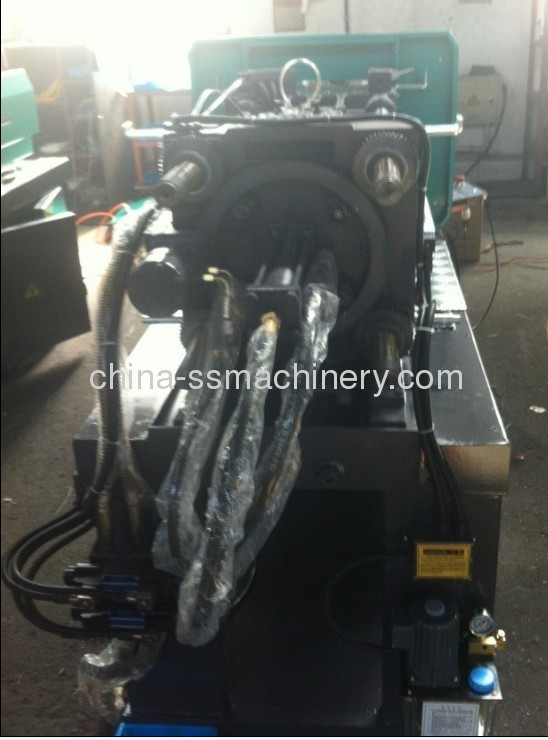

Computer controlled fixed pump plastic injection moulding machine

Model: SSF1180-K5
Place of Origin: Zhejiang,China (Mainland)
Brand Name: Shuangsheng
Power: 50HZ
injection weight: 175g
clamp force: 1180kn
space between tie bars: 370*370
Min-max mould height: 150~380
Color: green or blue
Auxilaries: hopper dryer,aultoloader,chiller

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:1.0 USDProduction Capacity:30 sets/month
Trade Term:FOBPacking:nylon plastic bag in...
Payment Terms:L/C, T/TDelivery Date:30 days
MOQ:1 Set/Sets
Means of Transport:Ocean

Computer controlled fixed pump plastic injection moulding machine;
Parameters of 1180KN plastic injection machine as below;

ItemsParameterUnitParameter Value (SSF1180)
Injection UnitScrew diametermmABC
353842
Screw L/D ratioL/D2220.218.4
shot volumn (theoretical)Cm3163192235
injection weight(PS)g148175213
plasticizing capacityg/s5.26.27.5
injection rateg/s89105128
injection pressureMpa219186152
screw speedrmp210
Clamping unitclamp forceKN1180
open strokemm350
distance between tie bars (W*H)mm370*370
max mould thicknessmm380
min mould thicknessmm150
ejector strokemm120
ejector forceKN38
ejector numberPC5
dia of mould location holemm125
Othersmax pump pressureMpa16
pump motor powerKW13
heating powerKW7.3
machine dimensionm4.3*1.28*1.9
machine weightT3.4
oil tank capacityL230


Plastic machinery maintenance tips;
Machinery can keep normal lifetime only under below good conditions:
1.Strictly comply all attention items that signifies in for-part of this instruction..
2.Pay attention to machinery clean and check regularly.
3.Pay attention to check all fastener parts, once loose is discovered, screw done immediately.
4.All movement surface should ensure enough lubricate and choose lubricate oil correctly.
5.Screw rod pre-mould and mould adjust hydraulic pressure motor rating pressure is 10Mpa, pay attention to this while operation.
6. Daily checking items as below:
a.whether there is line cut-off of heating ring;
b.temperature control position"0";
c.all electric implement switches, especially to safety door and urgency stop switch;
d.mould fixed screw;
e.cooling water cycle supply;
f.whether pressure react delicacy, correct;
g.Whether the fuel tank oil level's position does meet the requirement, whether the fuel head does have obvious fluctuation;
h.inspect lubricating-oil tank oil facial suture, whether lubricating oil sufficient, whether various lubrication points attachment's pipeline does have the leakage phenomenon, whether lubricates `unimpeded. If lubrication points do not have oil founded, it shows that this spot has the breakdown, before starting production again, it needs repairing.
7. Weekly inspection as below:
a.whether machinery all parts lubricate normally;
b.whether all screw of stroke switches loose;
c.whether heating ring loose, whether thermocouple connect material tube hole bottom well;
d.Grounding line contact resistance;
e.whether there is leakage between pressure oil tube and pipe tie-in;
f.clean filter of oil pump ;
8.Regularly checking as below:
a.Hydraulic fluid quality, new machine used three months must replace fresh oil, fuel tank needs cleaning, simultaneously filter of oil pump needs cleaning, later that all these device replace every year, in order to prolong oil pump, various hydraulic element and oil seal ring's service lifetime.
b.To electrical machinery and various hydraulic element, you must carry on the clearing to machine various parts, to guarantee machine's normal use.
c.Inspect whether all indication task works normally, whether all electric appliances in electrically controlled box become loose.
